Pneumatic Dot Peen Marking Machine

What It Is

A pneumatic dot peen marking machine is a type of industrial marking system that uses air pressure and a carbide pin to strike the surface of a material and create deep, permanent marksIt works on metals, plastics, and even hard surfaces like steel and aluminum.

How It Works

The machine uses compressed air to move the stylus or marking pin. This pin rapidly hits the surface in a pattern controlled by software. The result is a dot-by-dot engraving — often called pin stamping or dot peen marking.

Key Parts

A typical pneumatic dot peen marking machine includes:

• Marking head: Contains the stylus and driver
• Controller: Sends instructions to the head
• Software: Design and layout the marking content
• Air compressor: Provides the pneumatic power
• Fixture: Holds the part during marking

Main Features

Here’s what makes these machines effective:

• Deep and durable marks
• High-speed marking
• Adjustable force and depth
• Works on flat or curved surfaces
• Suitable for hard metals
• Long-lasting carbide pins
• User-friendly interface
• No ink or chemicals needed

Where It’s Used

Industries using this technology include:

• Automotive: Chassis, engine, gears, VINs
• Aerospace: Part numbers, traceability
• Metalworking: Tool IDs, dies, molds
• Defense: Weapons, accessories
• Electronics: Metal enclosures, cables
• Construction: Steel beams, pipes
• Agriculture: Equipment serials

The Pneumatic dot peen marking machine is ideal for traceability, anti-counterfeiting, and branding.

Benefits Over Other Systems

Compared to other marking methods like laser, inkjet, or chemical etching, dot peen offers:

• No consumables
• No risk of fading
• Works in harsh environments
• Lower cost
• Less maintenance
• Reliable on oily or dirty parts
• Good for both soft and hard materials

Portable or Benchtop

These machines come in two main styles:

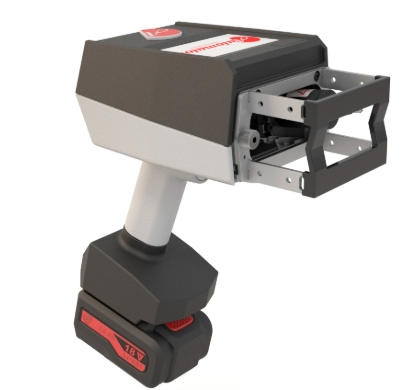

Portable

Used for marking large or heavy items that cannot be moved easily on -site in construction or heavy machinery.

Benchtop

Fixed machines for factory or workshop use. Great for high-volume, consistent jobs with repeatable quality.

Easy Software Use

Software makes the machine easy to use. You can:

• Design marks on a PC
• Import files (DXF, BMP, etc.)
• Generate barcodes or serial numbers
• Automate date, time, or batch info
• Adjust font, size, and angle
• Save templates for repeat use

Many modern systems also allow USB or Wi-Fi transfers for easier operation.

Read also: Benefits of Expanded Polystyrene Blocks in Modern Packaging

Custom Options

Some machines are built with custom features:

• Rotary axis for marking round parts
• 2D barcode and QR code support
• Touchscreen controls
• Automated fixture systems
• Multi-language interfaces
• Integration with ERP or MES systems

These options improve efficiency and flexibility.

Choosing the Right Model

When buying a pneumatic dot peen marking machine, consider:

• Material type: Hard metals need stronger pins
• Marking size: Large logos require larger work area
• Power: Stable air pressure is key
• Speed: Higher speed for batch jobs
• Software compatibility: Easy to use and upgrade
• Support: Training, spare parts, maintenance
• Cost: Look for ROI, not just price

Maintenance Tips

To extend the life of your machine:

• Keep the pin clean
• Lubricate moving parts regularly
• Check air pressure lines
• Replace worn-out stylus tips
• Keep software updated
• Store in a dry, dust-free area

A well-maintained machine can last many years.

Marking Depth Control

One strength of pneumatic machines is adjustable depth. You can create:

• Light marks: For soft materials or shallow engraving
• Deep marks: For tough metals like steel or cast iron
• Medium marks: For painted or coated surfaces

This flexibility is great for parts needing long-term identification.

Safety Considerations

These machines are safer than lasers, but still need precautions:

• Use in well-ventilated areas
• Wear ear protection (it can be noisy)
• Avoid placing fingers near the stylus
• Use proper fixtures to avoid slipping

Most machines have emergency stop buttons and safety shields.

Environment and Energy

Pneumatic dot peen marking is eco-friendly. It:

• Uses no ink, solvents, or chemicals
• Requires only air and electricity
• Produces minimal waste
• Operates with low energy compared to lasers

This makes it ideal for companies seeking sustainable solutions.

Common Applications

Some real-world examples:

• Automotive shops marking parts before shipping
• Tool manufacturers engraving serials on each item
• Defense contractors using deep marks on rifle parts
• Fabricators labeling steel frames for bridges
• OEMs adding barcodes for quality tracking

Each use case benefits from fast, permanent, and cost-effective marking.

Global Market Growth

With rising demand for traceability, the global market for dot peen systems is growing fast. Countries like China, Germany, the US, and India are leading suppliers and buyers. Exporters provide worldwide shipping and multilingual software.

What Makes a Good Supplier

Look for a supplier who offers:

• Years of experience
• Full technical support
• Machine customization
• Quick delivery
• Spare parts availability
• Warranty and training
• Affordable pricing

Some even offer installation and on-site service.

Conclusion

Whether you’re a small manufacturer or a large factory, this system gives you the ability to permanently label your parts with precision and speed.

With no inks, no fading, and no mess, it’s a smart investment for any business needing traceability, compliance, and branding.

Choose the right machine, take care of it, and it will mark your success — one dot at a time.
